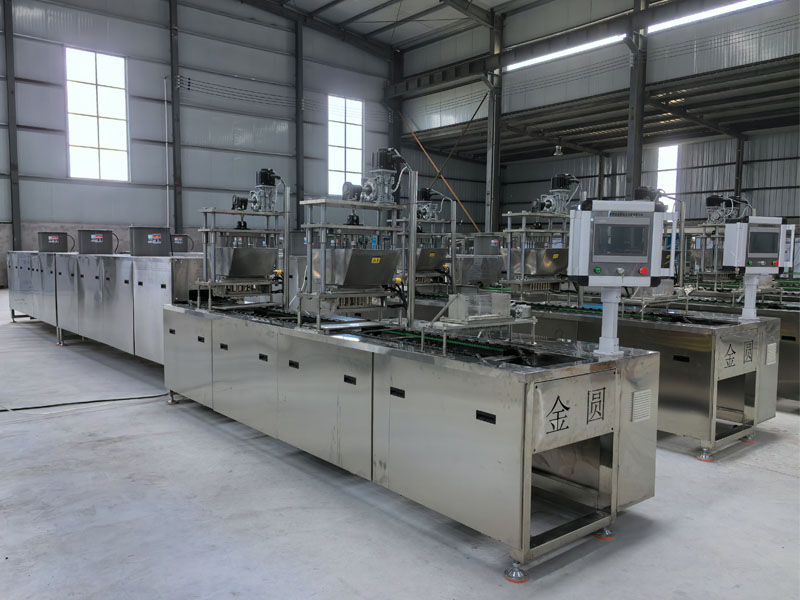

Hard Candy Depositing Production Line
NY NewRo hard candy depositing production line is mainly used for hard candy making. It integrates mechanical, electric, compressed air, and automatic control. It is high capacity, high quality, various products design, easy operation, reliable structure design, and high automatic grade. It can not only produce transparent hard candy, double colors candy, double layers with double flavors candy, center filling candy, but also whirl designed product with multiple colors and tastes.
Names | JY350 | JY500 | JY700 |
Capacity(5g candy) | 360kg/h | 500kg/h | 720kg/h |
Power consumption(cooker) | 16kw | 23kw | 23kw |
Power consumption(depositor) | 17kw | 19kw | 23kw |
Compressed air consumption | 0.5m³/min | 0.5m³/min | 0.5m³/min |
Compressed air pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa |
Steam consumption | 450kg/h | 500kg/h | 600kg/h |
Steam pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
Water consumption | 2200L/h | 2200L/h | 2200L/h |
Size(L*W*H) | 13500*2000*2700mm | 13500*2500*2700mm | 13500*2800*2700mm |
Weight | 6000kgs | 7500kgs | 8000kgs |
