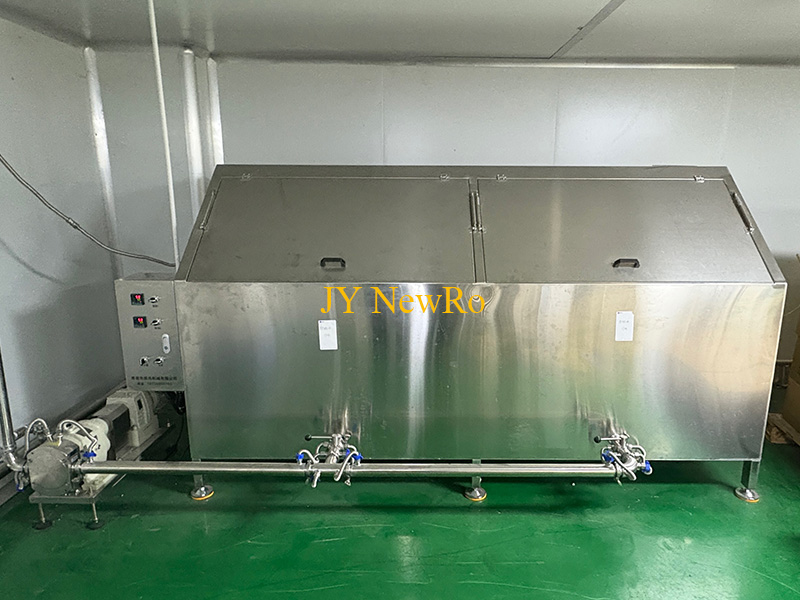

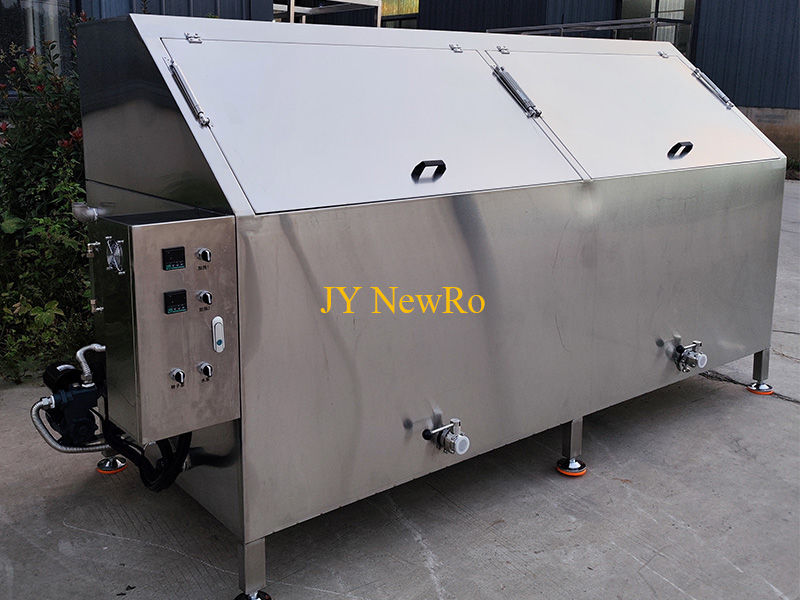

Cocoa Butter / Replacer Melter
cocoa butter melting tank is a specialized piece of equipment used in the chocolate manufacturing process to melt solid cocoa butter into a liquid state. This process is essential for various stages of chocolate production, including tempering, enrobing, and molding.
Machine dimensions: 2900*1350*1500mm .Total weight: about 1050kg .Melting speed: 2-3 hours/ton under temperature control of 70 degrees
Machine power: 24.5kw
Main electrical appliances: Shanghai Yatai temperature controller, Delixi brand leakage protection and related AC contactors.
Heating method: Self-circulation of self-electric heating water pump.
Heating power: 2 6kW heating tubes on each side.
Heating use: Divided into two switches for heating 1 and heating 2, which are independently controlled. One set can be used for heating normally, and the other set is reserved for backup.
Oil injection port: Large opening with trapezoidal slope on the side for easy oil injection.

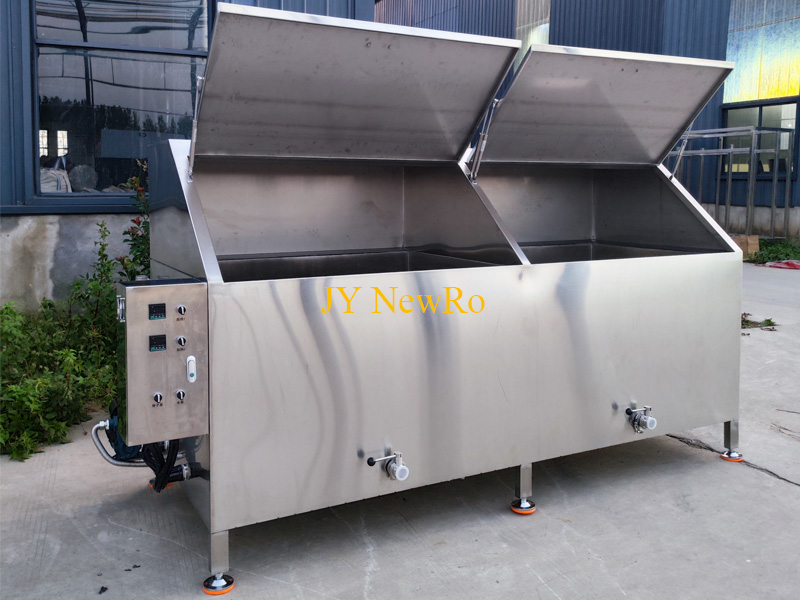

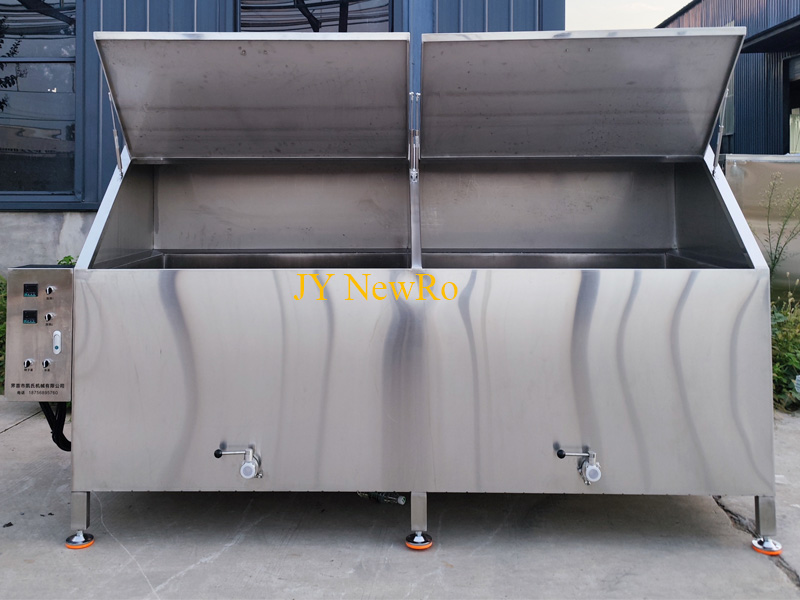

Trough design: 2 tanks, each with 500kg oil capacity, bottom slope, low front and high back, no residue after oil discharge, and all sides of the cylinder wall are sloped to prevent oil overflow.
Stainless steel hydraulic lifting cylinder: 6 cylinders with 150N thrust each, the height of the door cover after lifting is 1.95 meters, which is convenient for the oil thrower to operate.
Melting oil pipe design: 6 304 stainless steel seamless pipes with a wall thickness of 5 mm and a diameter of 57 mm to ensure that the melting oil pipe is not easy to deform.
Melting oil pipe principle: The center of the melting oil pipe is 15 cm high from the bottom of the melting oil cylinder. The length of a single melting oil pipe is 2.45 meters. They are connected in this way in the insulation water interlayer, and the water is connected in series to ensure the constant heat flow of the melting oil pipe, so as to achieve the purpose of faster melting of grease.
Oil outlet form: The bottom interlayer elbow extends to the side outlet.
Oil outlet setting: 2 oil outlets, corresponding to the middle position of 2 oil tanks respectively.
Discharge port height from ground: 25 cm from the bottom of the oil outlet valve (applicable to the inlet height of conventional rotor pumps)
Inner plate and bottom plate thickness: 4 mm thick 304 stainless steel plate, the inner plate is reinforced with 3 layers of reinforcement, and the inner and outer bottom plates are connected and reinforced with frames.
Outer plate thickness: 3 mm thick 304 stainless steel plate with 3 layers of reinforcement.
Outer insulation cotton: 3 cm thick insulation cotton made of rubber and plastic fireproof material.Outermost layer of stainless steel: 1.2 mm thick 201 material
Required main inlet line: 6 square 4-core soft copper cable is recommended.
Oil outlet filter: 2 30 mesh can be flexibly replaced with screens.
Machine power: 24.5kw
Main electrical appliances: Shanghai Yatai temperature controller, Delixi brand leakage protection and related AC contactors.
Heating method: Self-circulation of self-electric heating water pump.
Heating power: 2 6kW heating tubes on each side.
Heating use: Divided into two switches for heating 1 and heating 2, which are independently controlled. One set can be used for heating normally, and the other set is reserved for backup.
Oil injection port: Large opening with trapezoidal slope on the side for easy oil injection.
Trough design: 2 tanks, each with 500kg oil capacity, bottom slope, low front and high back, no residue after oil discharge, and all sides of the cylinder wall are sloped to prevent oil overflow.
Stainless steel hydraulic lifting cylinder: 6 cylinders with 150N thrust each, the height of the door cover after lifting is 1.95 meters, which is convenient for the oil thrower to operate.
Melting oil pipe design: 6 304 stainless steel seamless pipes with a wall thickness of 5 mm and a diameter of 57 mm to ensure that the melting oil pipe is not easy to deform.
Melting oil pipe principle: The center of the melting oil pipe is 15 cm high from the bottom of the melting oil cylinder. The length of a single melting oil pipe is 2.45 meters. They are connected in this way in the insulation water interlayer, and the water is connected in series to ensure the constant heat flow of the melting oil pipe, so as to achieve the purpose of faster melting of grease.
Oil outlet form: The bottom interlayer elbow extends to the side outlet.
Oil outlet setting: 2 oil outlets, corresponding to the middle position of 2 oil tanks respectively.
Discharge port height from ground: 25 cm from the bottom of the oil outlet valve (applicable to the inlet height of conventional rotor pumps)
Inner plate and bottom plate thickness: 4 mm thick 304 stainless steel plate, the inner plate is reinforced with 3 layers of reinforcement, and the inner and outer bottom plates are connected and reinforced with frames.
Outer plate thickness: 3 mm thick 304 stainless steel plate with 3 layers of reinforcement.
Outer insulation cotton: 3 cm thick insulation cotton made of rubber and plastic fireproof material.Outermost layer of stainless steel: 1.2 mm thick 201 material
Required main inlet line: 6 square 4-core soft copper cable is recommended.
Oil outlet filter: 2 30 mesh can be flexibly replaced with screens.
